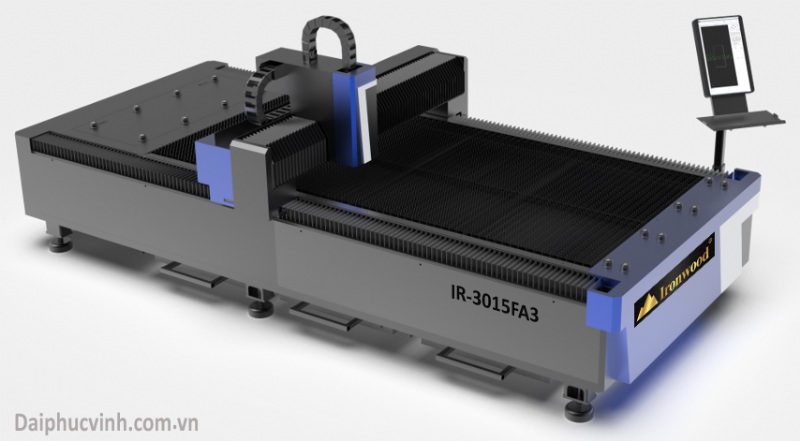

Description
Key Features
Equipped with Raytools cutting head (Switzerland) for superior cutting quality
High-performance Max Fiber power source
Delta (Taiwan) servo system for stable, precise motion
Raytools control system for smart operation
MOTOREDUCER gearbox (France) ensuring durability and accuracy
Hiwin linear guideways (Taiwan) for smooth movement
Precision rack: YYC / APEX
Cooling system: TEYU S&A
Pneumatic system: Airtac (Taiwan)
Automatic lubrication system for rail protection
Heavy-duty machine frame for maximum stability
Cast aluminum gantry beam for higher speed & precision
Technical Specifications
Working area: 1500 × 3000 mm
Laser power: 3000 W
Max. moving speed: 80 m/min
Positioning accuracy: ±0.03 mm
Repeat positioning accuracy: ±0.01 mm
Power consumption: < 18 kW
Machine dimensions: 4680 × 2280 × 2040 mm
Machine weight: 2000 kg
Equipped with Raytools cutting head (Switzerland) for superior cutting quality
High-performance Max Fiber power source
Delta (Taiwan) servo system for stable, precise motion
Raytools control system for smart operation
MOTOREDUCER gearbox (France) ensuring durability and accuracy
Hiwin linear guideways (Taiwan) for smooth movement
Precision rack: YYC / APEX
Cooling system: TEYU S&A
Pneumatic system: Airtac (Taiwan)
Automatic lubrication system for rail protection
Heavy-duty machine frame for maximum stability
Cast aluminum gantry beam for higher speed & precision
Technical Specifications
Working area: 1500 × 3000 mm
Laser power: 3000 W
Max. moving speed: 80 m/min
Positioning accuracy: ±0.03 mm
Repeat positioning accuracy: ±0.01 mm
Power consumption: < 18 kW
Machine dimensions: 4680 × 2280 × 2040 mm
Machine weight: 2000 kg
