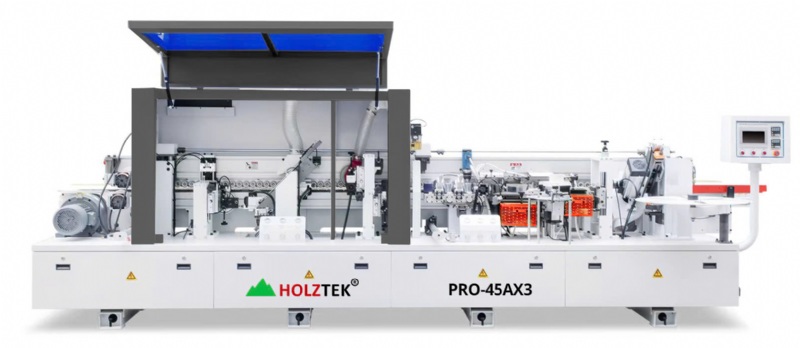

Description
Key Features
45° panel edge beveling system
Edge cleaning fluid spraying unit
Automatic lubrication system for machine protection
Electric adjustment of working thickness
Dual glue pot system: 45° & 90° applications
Vertical edge width: 3 mm
Functions
45° edge bevel milling
45° groove cutting
Edge gluing at 45° and 90° angles
Automatic edge pressing & bonding
End trimming (front & rear of the panel)
Top & bottom edge trimming
Edge scraping for fine finishing
Buffing & polishing for clean edges
Technical Specifications
Minimum panel width: 120 mm
Minimum panel length: 250 mm
Edge banding thickness: 1 – 2 mm
Panel thickness: 14 – 25 mm
Feeding speed: 14 – 16 – 18 m/min
Required air pressure: 0.6 Mpa
Total power: 16 kW
Machine dimensions: 5200 × 900 × 1650 mm
Machine weight: 1800 kg
45° panel edge beveling system
Edge cleaning fluid spraying unit
Automatic lubrication system for machine protection
Electric adjustment of working thickness
Dual glue pot system: 45° & 90° applications
Vertical edge width: 3 mm
Functions
45° edge bevel milling
45° groove cutting
Edge gluing at 45° and 90° angles
Automatic edge pressing & bonding
End trimming (front & rear of the panel)
Top & bottom edge trimming
Edge scraping for fine finishing
Buffing & polishing for clean edges
Technical Specifications
Minimum panel width: 120 mm
Minimum panel length: 250 mm
Edge banding thickness: 1 – 2 mm
Panel thickness: 14 – 25 mm
Feeding speed: 14 – 16 – 18 m/min
Required air pressure: 0.6 Mpa
Total power: 16 kW
Machine dimensions: 5200 × 900 × 1650 mm
Machine weight: 1800 kg
