Description
Key Features

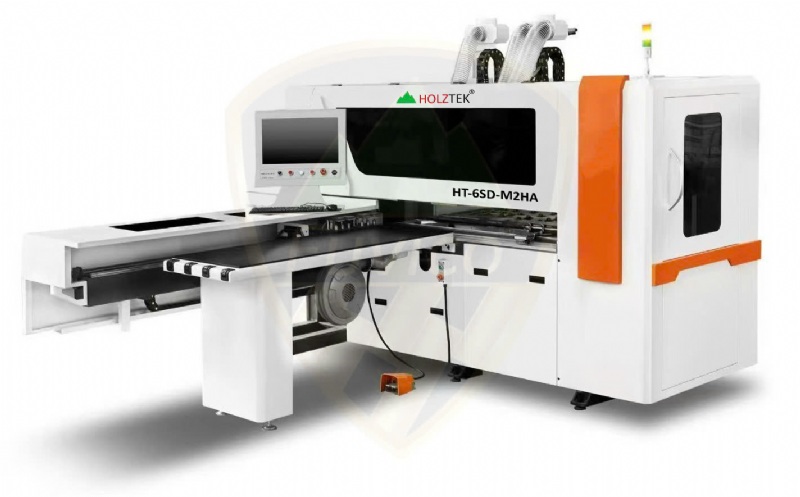

Six-sided drilling system for panels
Router spindle system for profiling and detailing
Heavy-duty drilling block: CC/HQD
Servo/Driver system: HCFA / Leashine
Control system: LNC (Taiwan)
Linear guide system: YINKE (Taiwan)
Control screen: 21-inch display
Contactor: Schneider (France)
Main Technical Specifications
Working length: 150–4000 mm
Working width: 50–1200 mm
Working thickness: 10–60 mm
Y-axis moving speed: 90 m/min
Clamping system speed: 130 m/min
Upper Drilling Unit (x2 sets)
Vertical drills: 12 bits
Horizontal drills: 2+2 ×2 (X & Y directions)
Lower Drilling Unit
Upward vertical drills: 9 bits
Upper Router Spindle
Power: 6 kW
Automatic tool changer: 6 tools
Spindle speed: 18,000 rpm
Lower Router Spindle
Power: 3.5 kW
Spindle speed: 18,000 rpm
Other Specifications
Required air pressure: 0.6–0.8 MPa
Total power: 27.5 kW
Machine dimensions: 5940 × 3050 × 2320 mm
Machine weight: 3100 kg
Dust extraction ports: D150 × 3
Six-sided drilling system for panels
Router spindle system for profiling and detailing
Heavy-duty drilling block: CC/HQD
Servo/Driver system: HCFA / Leashine
Control system: LNC (Taiwan)
Linear guide system: YINKE (Taiwan)
Control screen: 21-inch display
Contactor: Schneider (France)
Main Technical Specifications
Working length: 150–4000 mm
Working width: 50–1200 mm
Working thickness: 10–60 mm
Y-axis moving speed: 90 m/min
Clamping system speed: 130 m/min
Upper Drilling Unit (x2 sets)
Vertical drills: 12 bits
Horizontal drills: 2+2 ×2 (X & Y directions)
Lower Drilling Unit
Upward vertical drills: 9 bits
Upper Router Spindle
Power: 6 kW
Automatic tool changer: 6 tools
Spindle speed: 18,000 rpm
Lower Router Spindle
Power: 3.5 kW
Spindle speed: 18,000 rpm
Other Specifications
Required air pressure: 0.6–0.8 MPa
Total power: 27.5 kW
Machine dimensions: 5940 × 3050 × 2320 mm
Machine weight: 3100 kg
Dust extraction ports: D150 × 3
