Description
Key Features
High-precision processing with aluminum motor support pads
Aluminum shell motors with cooling grooves for fast heat dissipation
Edge cleaning fluid spraying system
Electrical components: LS (Korea)
Pneumatic system: EASUN, Airtac
High-quality inverter: INOVANCE
PLC controller: Delta (Taiwan)

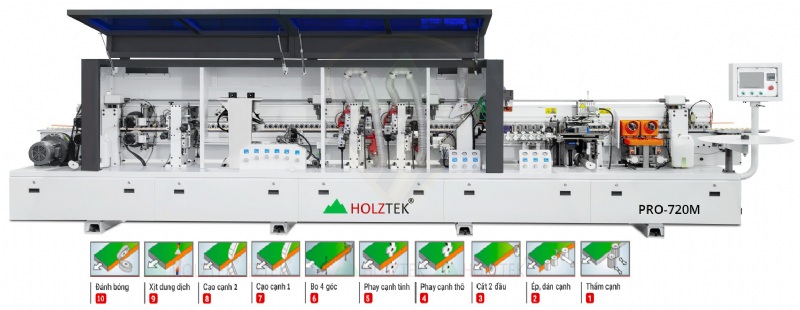

Functions (10-in-1)
Double trimming unit for panel edges before banding
Automatic feeding, gluing, edge banding, trimming excess tape
Automatic end trimming (front & back ends)
Rough trimming on top & bottom edges (1st pass)
Fine trimming on top & bottom edges (2nd pass)
Corner rounding on both ends of the panel
Radius scraping for smooth edge finishing
Flat scraping for fine surface finishing
Cleaning fluid spraying to remove glue residues
Buffing & polishing unit for perfect edge finish
Technnical Specifications
Minimum panel width: 50 mm
Minimum panel length: 120 mm
Panel thickness: 12 – 60 mm
Edge banding thickness: 0.4 – 3 mm
Feeding speed: 15 – 23 m/min
Total power: 15 kW
High-precision processing with aluminum motor support pads
Aluminum shell motors with cooling grooves for fast heat dissipation
Edge cleaning fluid spraying system
Electrical components: LS (Korea)
Pneumatic system: EASUN, Airtac
High-quality inverter: INOVANCE
PLC controller: Delta (Taiwan)
Functions (10-in-1)
Double trimming unit for panel edges before banding
Automatic feeding, gluing, edge banding, trimming excess tape
Automatic end trimming (front & back ends)
Rough trimming on top & bottom edges (1st pass)
Fine trimming on top & bottom edges (2nd pass)
Corner rounding on both ends of the panel
Radius scraping for smooth edge finishing
Flat scraping for fine surface finishing
Cleaning fluid spraying to remove glue residues
Buffing & polishing unit for perfect edge finish
Technnical Specifications
Minimum panel width: 50 mm
Minimum panel length: 120 mm
Panel thickness: 12 – 60 mm
Edge banding thickness: 0.4 – 3 mm
Feeding speed: 15 – 23 m/min
Total power: 15 kW
