Description

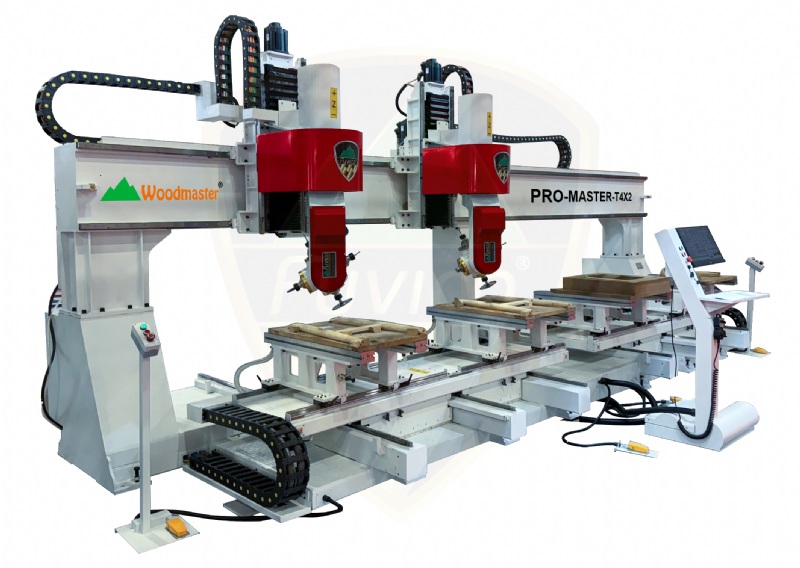

Key Features
Fixed tool calibration system installed on the machine
CNC control system: LNC
Servo system: INOVANCE (top brand in China)
Vacuum pump: Eurovac × 2 units
Ball screw: TBI (Taiwan)
Gear reducer: Adopt (Japan)
Technical Specifications
Working table size (5-axis mode): 900 × 1300mm × 2 table
Working size (3-axis mode): 1000 × 1800mm × 2 tables
Working size (single-table mode): 2400 × 1300mm
Axis travel: X = 5600mm, Y = 1900mm, Z = 900mm
C-axis rotation: ±360°
Maximum machining height: 470mm
Spindle motor: 5.5kW × 4 / ER-32 collet
Spindle speed: 18,000 rpm
Total power: 30kW
Installation dimensions: Approx. L6800 × W3330 × H3400mm
Net weight: ~6,500kg
Fixed tool calibration system installed on the machine
CNC control system: LNC
Servo system: INOVANCE (top brand in China)
Vacuum pump: Eurovac × 2 units
Ball screw: TBI (Taiwan)
Gear reducer: Adopt (Japan)
Technical Specifications
Working table size (5-axis mode): 900 × 1300mm × 2 table
Working size (3-axis mode): 1000 × 1800mm × 2 tables
Working size (single-table mode): 2400 × 1300mm
Axis travel: X = 5600mm, Y = 1900mm, Z = 900mm
C-axis rotation: ±360°
Maximum machining height: 470mm
Spindle motor: 5.5kW × 4 / ER-32 collet
Spindle speed: 18,000 rpm
Total power: 30kW
Installation dimensions: Approx. L6800 × W3330 × H3400mm
Net weight: ~6,500kg
