Description
Key Features

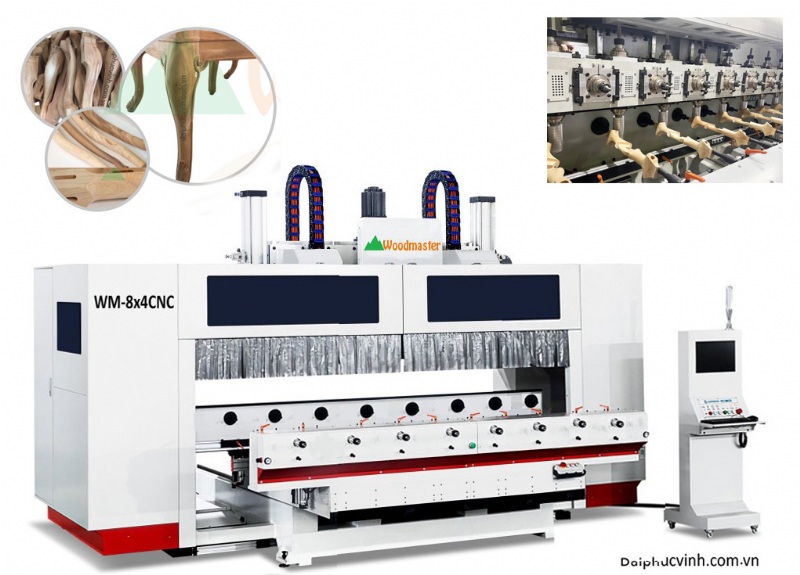

Designed to process 8 workpieces simultaneously with a 360° rotary axis
Equipped with a total of 32 spindles, capable of machining various complex workpiece formats
Specialized for difficult 4D products such as curved table legs, chair legs, and intricate shapes
Servo system: INOVANCE
Electrical starter system: Schneider (France)
Technical Specifications
X-axis travel: 500 mm
Y-axis travel: 1200 mm
Z-axis travel: 500 mm
Maximum working length: 1200 mm
Axis moving speed: 50 m/min
Maximum machining speed: 20 m/min
Rotary clamping axis: 360°
Distance between spindles: 300 mm
Maximum machining diameter: 180 mm
Dust collection port: D150 × 3
Spindle motor power: 6 kW × 8
Spindle motor power: 4 kW × 8
Total power: 91 kW
Machine dimensions: 4200 × 3600 × 2600 mm
Machine weight: 8000 kg
Designed to process 8 workpieces simultaneously with a 360° rotary axis
Equipped with a total of 32 spindles, capable of machining various complex workpiece formats
Specialized for difficult 4D products such as curved table legs, chair legs, and intricate shapes
Servo system: INOVANCE
Electrical starter system: Schneider (France)
Technical Specifications
X-axis travel: 500 mm
Y-axis travel: 1200 mm
Z-axis travel: 500 mm
Maximum working length: 1200 mm
Axis moving speed: 50 m/min
Maximum machining speed: 20 m/min
Rotary clamping axis: 360°
Distance between spindles: 300 mm
Maximum machining diameter: 180 mm
Dust collection port: D150 × 3
Spindle motor power: 6 kW × 8
Spindle motor power: 4 kW × 8
Total power: 91 kW
Machine dimensions: 4200 × 3600 × 2600 mm
Machine weight: 8000 kg
