Description
System Information

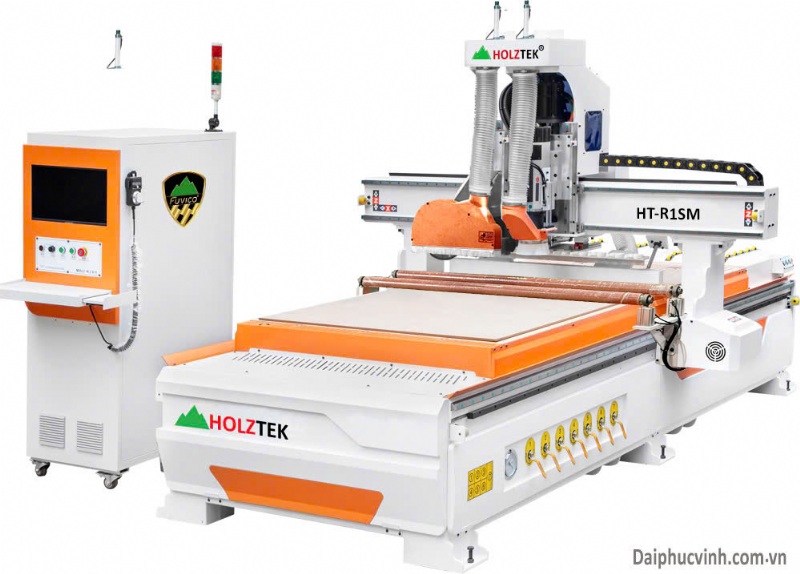

Heavy-Duty Single-Head CNC Router with Automatic Tool Changer
Dual Saw Spindles with Multi-Directional Rotation
Centralized Control System
Automatic Hydraulic Lifting Table
Automatic Outfeed Conveyor
Key Features
Router Spindle Power: 9kW
Dual Saw Spindles with Multi-Directional Cutting
Central Control System: LNC Taiwan
Heavy-Duty Driver: 1.5kW
Ball Screw System: TBI Taiwan
Linear Guideway: HIWIN Taiwan
Motor Base Pads: Solid 6061 Aluminum Alloy
Electrical Components: Schneider, Zhongchen…
Automatic Lubrication Pump System
Automatic Pressure Roller System for Workpiece Feeding
Technical Specifications
Working Size: 1250 × 2800mm
Z-Axis Travel: 200mm
Axis Moving Speed: 60 m/min
Maximum Cutting Speed: 25 m/min
Router Spindle
Power: 9kW
Automatic Tool Changer: 12 tools
Spindle Speed: 0–24,000 rpm
Dual Saw Unit
Main Saw Motor: 6kW
Auxiliary Saw Motor: 1.5kW
Cutting Angle: 0–90°
Main Saw Blade Diameter: 305mm
Other Specifications
Vacuum PuMotor: 7.5kW (Water-Cooled)
Heavy-Duty Single-Head CNC Router with Automatic Tool Changer
Dual Saw Spindles with Multi-Directional Rotation
Centralized Control System
Automatic Hydraulic Lifting Table
Automatic Outfeed Conveyor
Key Features
Router Spindle Power: 9kW
Dual Saw Spindles with Multi-Directional Cutting
Central Control System: LNC Taiwan
Heavy-Duty Driver: 1.5kW
Ball Screw System: TBI Taiwan
Linear Guideway: HIWIN Taiwan
Motor Base Pads: Solid 6061 Aluminum Alloy
Electrical Components: Schneider, Zhongchen…
Automatic Lubrication Pump System
Automatic Pressure Roller System for Workpiece Feeding
Technical Specifications
Working Size: 1250 × 2800mm
Z-Axis Travel: 200mm
Axis Moving Speed: 60 m/min
Maximum Cutting Speed: 25 m/min
Router Spindle
Power: 9kW
Automatic Tool Changer: 12 tools
Spindle Speed: 0–24,000 rpm
Dual Saw Unit
Main Saw Motor: 6kW
Auxiliary Saw Motor: 1.5kW
Cutting Angle: 0–90°
Main Saw Blade Diameter: 305mm
Other Specifications
Vacuum PuMotor: 7.5kW (Water-Cooled)
