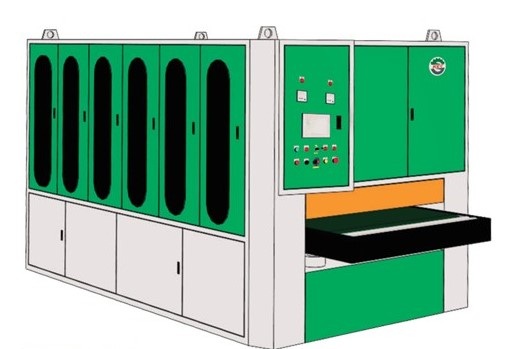

Profile Sanding Machine for Door and Furniture

Profile Sanding Machine is usable for buffing the grooved surface of Doors, Table Tops, different Furniture Parts.
Brushes in different pattern are mounted in different heads and also rotates in longitudinal & circular directions. Apart from rotations the oscillation of heads are also taken into design for achieving the desired results.
The Machine is generally designed with Six Heads Configurational but can be made with as many Heads as need of the particular application.
Working Thickness 6-120 mm
Working Width 200-1250 mm
No. of Heads Six
Ist Head (Brush Roller) Brushing with Brush Roller - 5 HP (3.7 KW)
IInd Head (Brush Roller) Brushing with Brush Roller - 5 HP (3.7 KW)
IIIrd Head (Brush Roller) Brushing with Brush Roller - 2 HP (1.5 KW)
IVth Head (Brush Roller) Brushing with Brush Roller - 2 HP (1.5 KW)
Vth Head (Brush Roller) Brushing with Brush Roller - 2 HP (1.5 KW)
VI th Head (Brush Roller) Brushing with Brush Roller - 2 HP (1.5 KW)

---
