Description

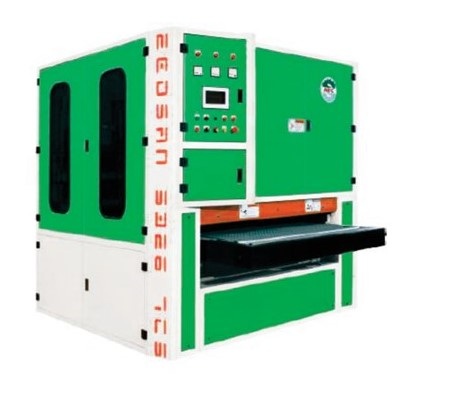

We developed the Sanding Machine with Cross Belt for Furniture industry where across the grain Sanding is essential along with longitudinal Wide Belts Heads for Pre Seal Sanding, Post Seal Sanding.
Ultra-fine Sanding with extra high Grit Sanding Belt run with Chevron Belt underneath and controlled by Electronic Segmented Pad.
This Machine is also usable for long Panels where narrow direction grains need perfect Sanding and also widely used for Veneer Tape removal application.
In general the Cross Belt Mechanism is designed to fix at out feed of the Machine to ensure final finishing touch on the scratches created by other Sanding Belts.
Specifications
Working Thickness 2-100 mm
Working Width 100-1250 mm
No. of Heads Three
Heads Configuration R + RP + CB
Head 1 Sanding with Rubber Roller - 15 HP (80.5 KW)
Head 2 Soft Rubber Contact Roller & Segment Pad 20 HP (18.64 KW)
Head 3 Soft Rubber & Segment Pad 20 HP (18.64 KW)
Sanding Belt Size 2620 x 1330
Ultra-fine Sanding with extra high Grit Sanding Belt run with Chevron Belt underneath and controlled by Electronic Segmented Pad.
This Machine is also usable for long Panels where narrow direction grains need perfect Sanding and also widely used for Veneer Tape removal application.
In general the Cross Belt Mechanism is designed to fix at out feed of the Machine to ensure final finishing touch on the scratches created by other Sanding Belts.
Specifications
Working Thickness 2-100 mm
Working Width 100-1250 mm
No. of Heads Three
Heads Configuration R + RP + CB
Head 1 Sanding with Rubber Roller - 15 HP (80.5 KW)
Head 2 Soft Rubber Contact Roller & Segment Pad 20 HP (18.64 KW)
Head 3 Soft Rubber & Segment Pad 20 HP (18.64 KW)
Sanding Belt Size 2620 x 1330
