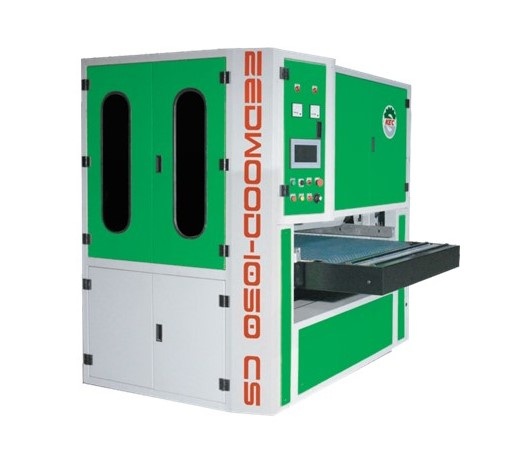

Solid Wood Calibrating and Sanding Machine

This Machine is introduced for solid wood furniture producing Industries. The Machine provides uniform wood thickness and high shining in one pass.
The Cutter Roller brings all thickness variations in one set value by applying minimum quantum of power. Sanding Belt application on second head converts the job into fine, smooth look.
Working Thickness 4-125 mm
Working Width 150-1250 mm
No. of Heads Two
Heads Configuration Cutter - R/P
Top - Head 1 Cutting with Cutter Roller - 15 HP (11 KW)
Top - Head 2 Sanding + Polishing with Sanding Pad - 15 HP (11 KW)
Sanding Belt Size 2620 x 1330 mm
Feeding Speed 5-40 mpm
Feed Motor 3 HP (2.2 KW)
Vertical Motion Motor 0.5 HP (0.37 KW)
Total Power 33.5 HP (25 KW)
Weight 3400 Kg
Dimensions (W X L X H) 1840 x 1850 x 1850 mm

---
