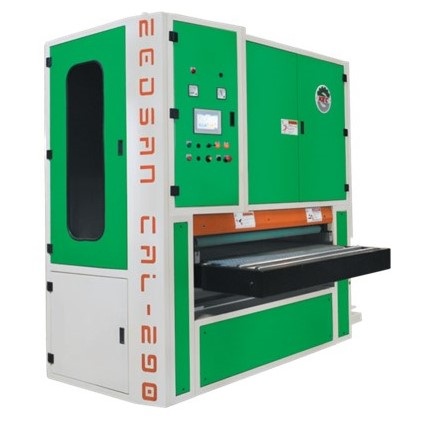

Single Head Calibrating Machine

Single Head Calibrating Machine is developed to produce the uniform thickness ply, with possibly the lowest thickness variation in between 0.05 to 0.15 mm.
We, as an innovating company in this field, created an ultimate design in Calibrating Machine with combinations of unique features, such as -
? Highly Accurate Calibration
? Good Speed of Production
? Lowest Electricity Consumption
? High No. of Sheet Output per Sanding Belt
? User Friendly in Maintenance
? Smooth Production
Specifications
Working Thickness 2-100 mm
Working Width 200-1250 mm
No. of Heads One
Heads Configuration R
Top - Head 1 Calibration with Steel Roller - 50 HP (37 KW)
Sanding Belt Size 2620 x 1350 mm
Feeding Speed 5-30 mpm
Feed Motor 5 HP (3.7 KW)
Brush Motor 1 HP (0.75 KW)
Vertical Motion Motor 0.5 HP (0.37 KW)
Total Power 56.5 HP (42 KW)
Weight 3500 Kg
Dimensions (W X L X H) 2240 X 2150 X 2300 mm

---
