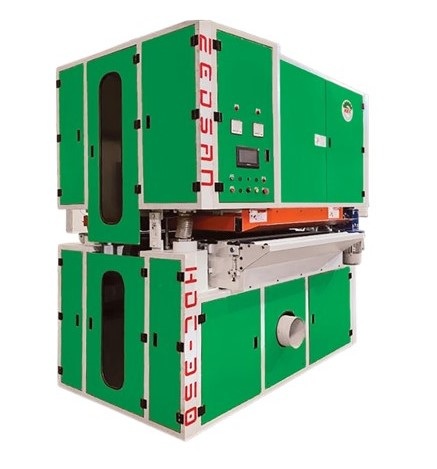

Heavy Duty Both Side Calibrating Machine

This Machine is developed by adding additional Sanding feature in existing Model of Calibrating Machine as there was long time awaited such dual-purpose Machine.
As already being used by several Plywood Industries, this model is perfectly observed for future compliance and revolutionized Plywood Manufacturing Process by eliminating the need of Face Veneer on Calibrated Mat Ply thus saving enormous amount of Time, Energy & Cost.
This is designed with selectable feature for -
*Calibration
*Sanding
*Calibration With Sanding.
This Machine is also featured with Human-less operation by adding Auto Loading System and Auto Stacking System.
Specifications
Working Thickness 4-100 mm
Working Width 200-1250 mm
No. of Heads Two
Heads Configuration R : R
Top & Bottom - Head 1 Calibration with Steel Roller - 60-100 HP (45 KW) x 2 No.
Sanding Belt Size 2620 x1350 mm
Feeding Speed 5-30 mpm
Roller Conveyor Motor 10 HP (7.5 KW)
Vertical Motion Motor 3 HP (2.2 KW)

---
