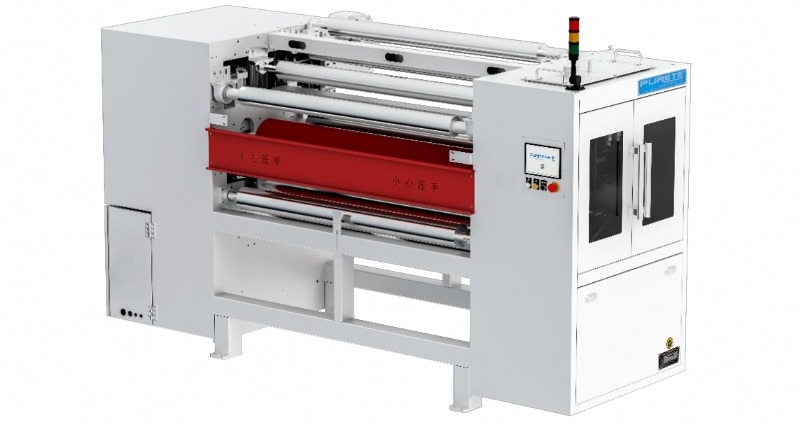

LAMINATING MACHINE

This machine is designed to apply pressure to the three-ply board after gluing and combination of fiberboard, honeycomb paperboard or particleboard cladding board. It has four-roller pressing group composed of two sets of press rollers and support rollers. The height of the upper press roller is automatically adjusted by manual setting according to the thickness of the board.
1. Effective working width: 0-1300mm
2. Effective working thickness: 3-40mm
3. Min length of item: 600mm
4. Conveyor speed: 5-20m/min
5. Total power: 18.05KW (including electric hoist)
6. Machine size: 1000mm×3024mm×3232mm
Press rubber roller: Size ￠240×1400 mm Material: 45#seamless steel tube Specification: silicone coated Quantity: 1 pc
Press steel roller： Size：￠240×1400 mm Material：45#seamless steel tube Specification: mirror roller Quantity：1 pc
Support roller： Size：￠240

---
