Description

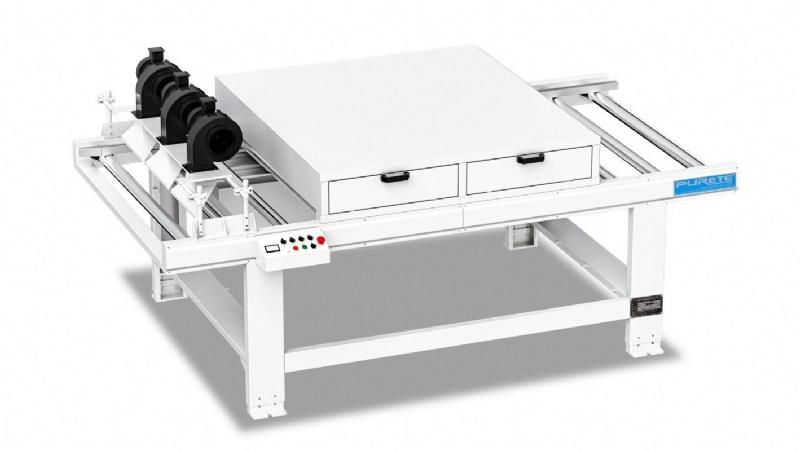

This machine adopts square tube welding frame, roller conveying, frequency conversion speed regulation, can be used as a stand-alone machine or in conjunction with assembly line. It's heated by infrared lamps. It is heated when the plate is detected by the photoelectric probe, and the heating is stopped when the plate is not detected, which saves energy to the greatest extent; preheating the plate can effectively enhance the adhesion of the glue on the plate.
1. Effective working width：0-1300mm
2. Machine length：3000mm
3. Conveying height: 900-920mm
4. Roller length：1370mm
5. Roller spacing：220mm
6. Total power：19.95KW
7. Machine size：3000mm×1800mm×1400mm
8. Blower：0.4KW*3=1.2KW
9. Infrared heating lamp：1.5KW×12 pcs=18KW
1. Effective working width：0-1300mm
2. Machine length：3000mm
3. Conveying height: 900-920mm
4. Roller length：1370mm
5. Roller spacing：220mm
6. Total power：19.95KW
7. Machine size：3000mm×1800mm×1400mm
8. Blower：0.4KW*3=1.2KW
9. Infrared heating lamp：1.5KW×12 pcs=18KW
