Description

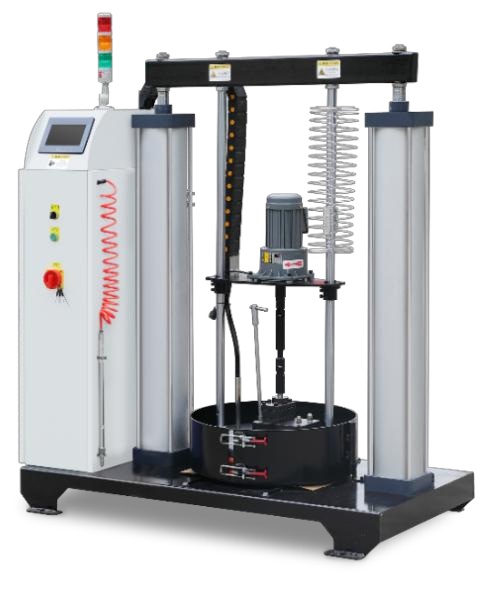

Equipped for PUR gluing machine, suitable for international 55 gallon barrel. This equipment connected by communication port with gluing machine, provides melted PUR
glue stably for gluing machine. This machine adopts Taiwan inverter, joint venture brand motor, and key electrical components adopt Schneider brand or famous joint venture
brand, and the quality is first-class among similar products. It adopts φ160 heavy-duty air cylinder, thickened steel plate solid chassis, and touch screen with intelligent
man-machine friendly interface.
Barrel specification: 200kg standard barrel (55gallon)
Barrel inner diameter: φ571mm
Power type: AC380V/50HZ
Heating power: 16KW
Temperature control: Normal temperature--180℃
Work pressure: 0.4～0.8MPa
Pressure plate stroke: Max:1100mm
Max speed of motor: 60rpm
Max glue pressure: 50kg/cm2
Melting speed: 1-120kg/h
Control system: PLC+ touch screen
Safety function: Heat preservation, low glue level alarm, over temperature alarm
glue stably for gluing machine. This machine adopts Taiwan inverter, joint venture brand motor, and key electrical components adopt Schneider brand or famous joint venture
brand, and the quality is first-class among similar products. It adopts φ160 heavy-duty air cylinder, thickened steel plate solid chassis, and touch screen with intelligent
man-machine friendly interface.
Barrel specification: 200kg standard barrel (55gallon)
Barrel inner diameter: φ571mm
Power type: AC380V/50HZ
Heating power: 16KW
Temperature control: Normal temperature--180℃
Work pressure: 0.4～0.8MPa
Pressure plate stroke: Max:1100mm
Max speed of motor: 60rpm
Max glue pressure: 50kg/cm2
Melting speed: 1-120kg/h
Control system: PLC+ touch screen
Safety function: Heat preservation, low glue level alarm, over temperature alarm
