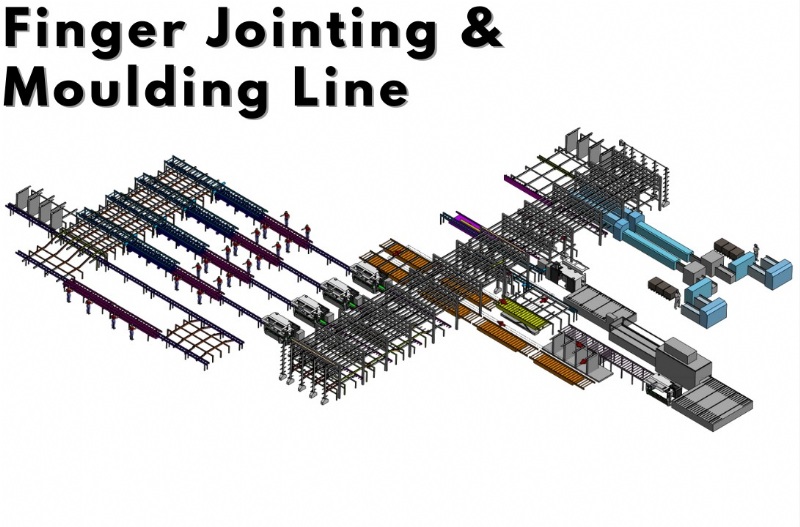

Finger Jointing & Moulding Line

Processing Line 1
1. Auto servo finger joint line for infeed L1.5M x W150mm x T90mm and outfeed L6M materials.
2. Customized large multi-layers curing zone after finger jointer.
3. Moulder infeed system feeding the materials into moulders according to the order.
4. 4 Side moulder
5. Moulder outfeed and manual checking station.

Processing Line 2
6. Timber after finger jointer fed into moulder via curing zone according to the order.
7. 4 Side moulder
8. Auto infeed system for high frequency press.
9. High Frequency press for infeed L6M x W1200mm x H90mm materials.
10. Multiple rip saw to cut the material into strip type after press.
11. Manual checking and defective products removing station.

Processing Line 3
12. Auto material stacking system after finger jointer for L6M x W150mm x H95mm materials, stacking dimension L6M x W1M x H1M.

Facts
1. Factory Size: Length x Width 62M x 57M 3534m2
2.Up to 100 m/min
3. Plant layout can be customized according to factory size.

---
