Description

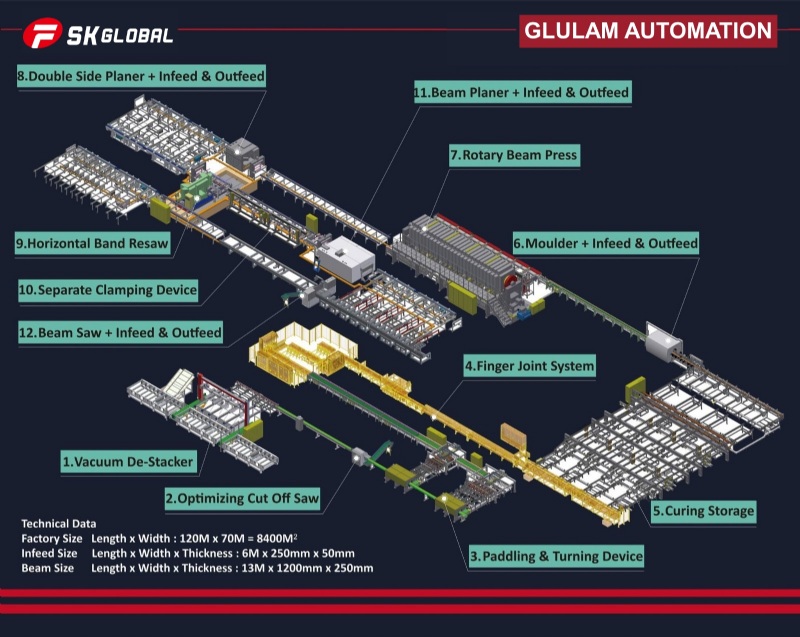

Process Description
1. Robot arm use vacuum stacker for stacking strips removal.
2. Ergonomic working platform.
3. Optimizing cut off saw cut the timber to the specified length and classify the timber.
4. Auto paddling system distributes the wood pieces with sensor.
5. Auto finger joint line for infeed length 3M outfeed length 13M materials.
6. Curing storage with lug chains
7. 100m per minute high speed moulder
8. Automatic roller + chain infeed conveyor with turning device.
9. Automatic rotary press for wooden beam.
10. Double side planer for 1300mm wide x 250mm height material.
11. Horizontal band resaw for cutting the timber into specified thickness.
12. Lifting mechanism for separating timber before beam planer.
13. Beam planer for 1300mm wide x 250mm height wooden post or beam.
14. Beam Saw for cutting 13M long beam into customized length.
Facts
1. Factory Size (LxW): 120M x 70M = 8400m2
2. Up to 30m3/shift 8 hour for glulam beams
3. Plant layout can be customized.
1. Robot arm use vacuum stacker for stacking strips removal.
2. Ergonomic working platform.
3. Optimizing cut off saw cut the timber to the specified length and classify the timber.
4. Auto paddling system distributes the wood pieces with sensor.
5. Auto finger joint line for infeed length 3M outfeed length 13M materials.
6. Curing storage with lug chains
7. 100m per minute high speed moulder
8. Automatic roller + chain infeed conveyor with turning device.
9. Automatic rotary press for wooden beam.
10. Double side planer for 1300mm wide x 250mm height material.
11. Horizontal band resaw for cutting the timber into specified thickness.
12. Lifting mechanism for separating timber before beam planer.
13. Beam planer for 1300mm wide x 250mm height wooden post or beam.
14. Beam Saw for cutting 13M long beam into customized length.
Facts
1. Factory Size (LxW): 120M x 70M = 8400m2
2. Up to 30m3/shift 8 hour for glulam beams
3. Plant layout can be customized.
