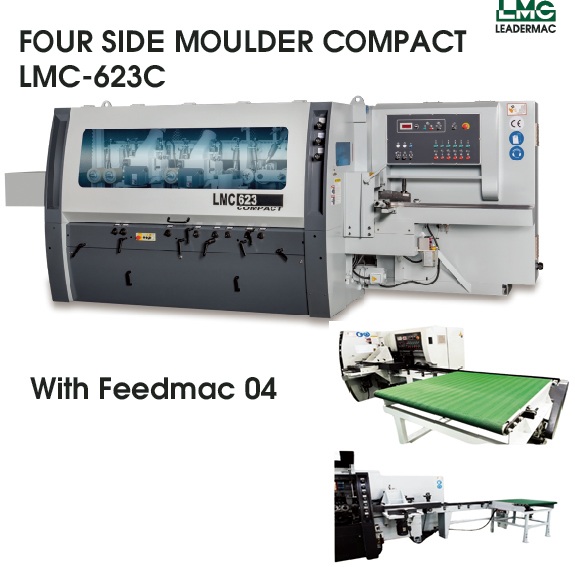

Four side moulder Compact

All moulders awarded CE certification.
One piece, Cast Iron Machine Frame is specially heat treated for maximum stability
and rigidity as standard configuration.
Faster Feed Speeds of up to 24 meters a minute(80 fpm) are standard.
Adjustment of each spindle except last bottom spindle can be easily performed by using the front
adjustment levers.
Each spindle is driven by an individual motor for powerful drilling and easy control.
Pneumatic Pressure of the top feed rolls can be easily set to provide an outstanding feeding effect.
Table surfaces are hard-chrome plated for maximum wear resistance.
All manually adjusted turning parts are housed in permanent grease lubricated bearings for oil-free
lubrication.
The Full Safety Enclosure serves as a chip and piece guard and helps to reduce noise.
FEED TABLE:The entire Cast Iron - The chromed infeed table is heat-treated using normalization for maximum stability. Infeed Table&Fence adjustment is quickly accomplished by means of a quick-setting

---
