Description

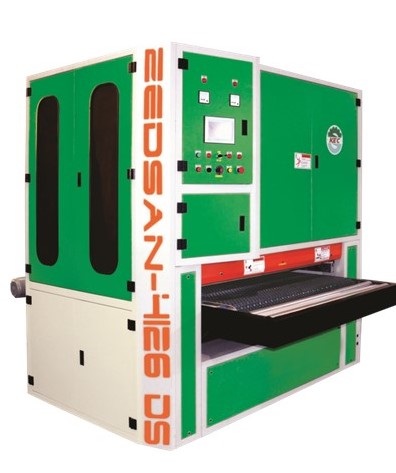

This Model is the best Sanding Machine for Commercial and Decorative Plywood Industry, as excellent sanding results are achieved with Servo Controlled Floating Roller Technology .
Specific features of this machine are -
? Perfect Sanding on Uneven Thickness
? Highly Glossy Sanding Results
? Fast production
? Changeable Results by easy configurations setting.
It is useful for -
Commercial Sanding
Veneer Sanding
MR Sanding
Flush Doors.
Specifications
Working Thickness : 2-100 mm
Working Width: 200-1250 mm
No. of Heads: Two
Heads Configuration: R-R/P
Top - Head 1 Sanding with Rubber Roller - 25 HP (18.64 KW)
Top - Head 2 Polishing with Sanding Pad - 20 HP (15 KW)
Sanding Belt Size 2620 x 1350 mm
Feeding Speed 5-40 mpm
Feed Motor 5 HP (3.7 KW)
Brush Motor 1 HP (0.75 KW)
Vertical Motion Motor 0.5 HP (0.37 KW)
Total Power 51.5 HP (38.4 KW)
Weight 3950 Kg
Dimensions (W X L X H) 2240 x 2500 x 2300 mm
Specific features of this machine are -
? Perfect Sanding on Uneven Thickness
? Highly Glossy Sanding Results
? Fast production
? Changeable Results by easy configurations setting.
It is useful for -
Commercial Sanding
Veneer Sanding
MR Sanding
Flush Doors.
Specifications
Working Thickness : 2-100 mm
Working Width: 200-1250 mm
No. of Heads: Two
Heads Configuration: R-R/P
Top - Head 1 Sanding with Rubber Roller - 25 HP (18.64 KW)
Top - Head 2 Polishing with Sanding Pad - 20 HP (15 KW)
Sanding Belt Size 2620 x 1350 mm
Feeding Speed 5-40 mpm
Feed Motor 5 HP (3.7 KW)
Brush Motor 1 HP (0.75 KW)
Vertical Motion Motor 0.5 HP (0.37 KW)
Total Power 51.5 HP (38.4 KW)
Weight 3950 Kg
Dimensions (W X L X H) 2240 x 2500 x 2300 mm
