Description

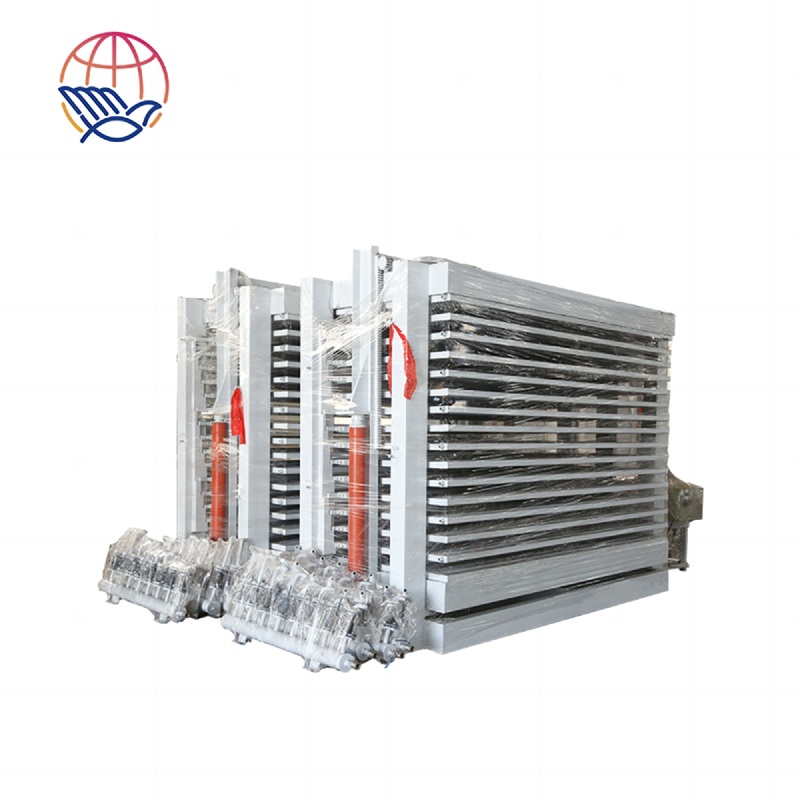

Model: YQST50.
Total pressure: 50 tons.
Board feeding direction: Transverse 2700mm size.
Layers: 15Layers.
Layer spacing: 70mm.
Square tube platen: 16pcs.
Square tube platen size: 2700*1370*42mm.
Square tube platen material: Q235.
Cylinder diameter: o100mm*2pcs.
Cylinder stroke: 1050mm.
Cylinder model: Wuxi cylinder, solid steel.
Cylinder seal: 5 rubber seals per cylinder.
Compression resistance: 25 Mpa.
Hydraulic pump flowing: 10ml/r*1pcs.
Power:5.5kw.
Composite frame: Assembled.
Upper and bottom beam: 300mm.
Middle beam: 200mm.
Capacity: 0.5-1m3/h (according to different moisture).
Overall dimension: 3200X1400X2520mm.
Weight: About 4.5 Tons.
Total pressure: 50 tons.
Board feeding direction: Transverse 2700mm size.
Layers: 15Layers.
Layer spacing: 70mm.
Square tube platen: 16pcs.
Square tube platen size: 2700*1370*42mm.
Square tube platen material: Q235.
Cylinder diameter: o100mm*2pcs.
Cylinder stroke: 1050mm.
Cylinder model: Wuxi cylinder, solid steel.
Cylinder seal: 5 rubber seals per cylinder.
Compression resistance: 25 Mpa.
Hydraulic pump flowing: 10ml/r*1pcs.
Power:5.5kw.
Composite frame: Assembled.
Upper and bottom beam: 300mm.
Middle beam: 200mm.
Capacity: 0.5-1m3/h (according to different moisture).
Overall dimension: 3200X1400X2520mm.
Weight: About 4.5 Tons.
