Description

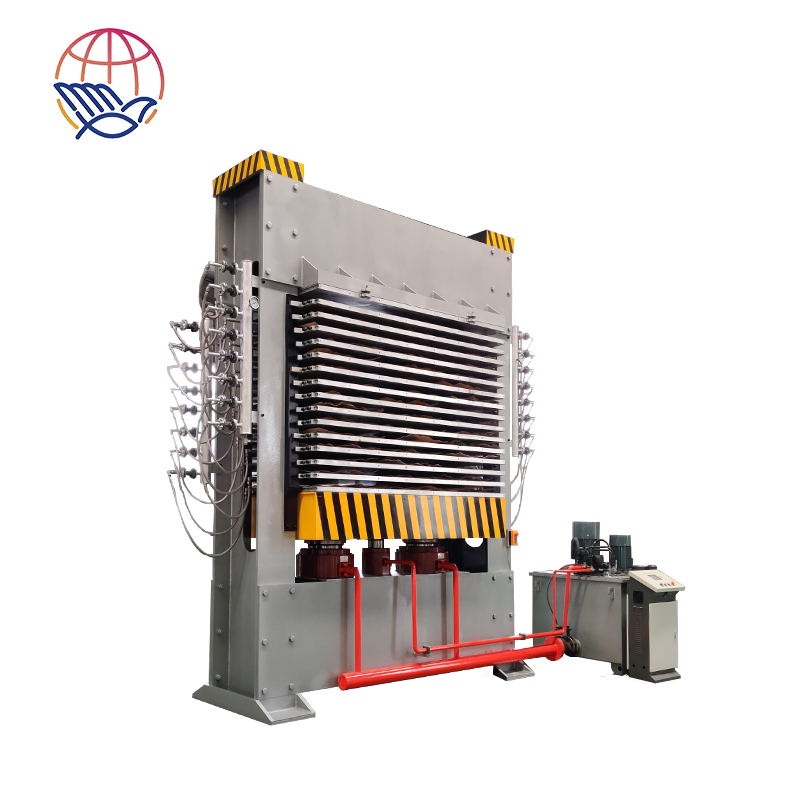

Model: YQ4X8RY500-15S.
Total pressure: 500 tons.
Board feeding direction: Transverse 2700mm size.
Layers: 15Layers.
Layer spacing: 70mm.
Hot platen: 16pcs.
Hot platen size: 2700*1370*42mm.
Hot platen material: Q345.
Cylinder diameter: 2*o360mm.
Cylinder stroke: 1050mm.
Cylinder model: Wuxi cylinder, solid steel.
Cylinder seal: 5 rubber seals per cylinder.
Compression resistance: 25 Mpa.
Low pressure pump flowing: 76ml/r*1pcs.
High pressure pump flowing: 25ml/r*1pcs.
Power: 18kw+7.5kw.
Composite frame: Assembled.
Upper and bottom beam: 900mm.
Middle beam: 400mm.
Main body: 35mm Q235.
Connect platen: 16mm, 20mm, 25mm.
Overall dimension: 3550mm*1370mm*4400mm.
Weight: About 32Tons.
Total pressure: 500 tons.
Board feeding direction: Transverse 2700mm size.
Layers: 15Layers.
Layer spacing: 70mm.
Hot platen: 16pcs.
Hot platen size: 2700*1370*42mm.
Hot platen material: Q345.
Cylinder diameter: 2*o360mm.
Cylinder stroke: 1050mm.
Cylinder model: Wuxi cylinder, solid steel.
Cylinder seal: 5 rubber seals per cylinder.
Compression resistance: 25 Mpa.
Low pressure pump flowing: 76ml/r*1pcs.
High pressure pump flowing: 25ml/r*1pcs.
Power: 18kw+7.5kw.
Composite frame: Assembled.
Upper and bottom beam: 900mm.
Middle beam: 400mm.
Main body: 35mm Q235.
Connect platen: 16mm, 20mm, 25mm.
Overall dimension: 3550mm*1370mm*4400mm.
Weight: About 32Tons.
