Description

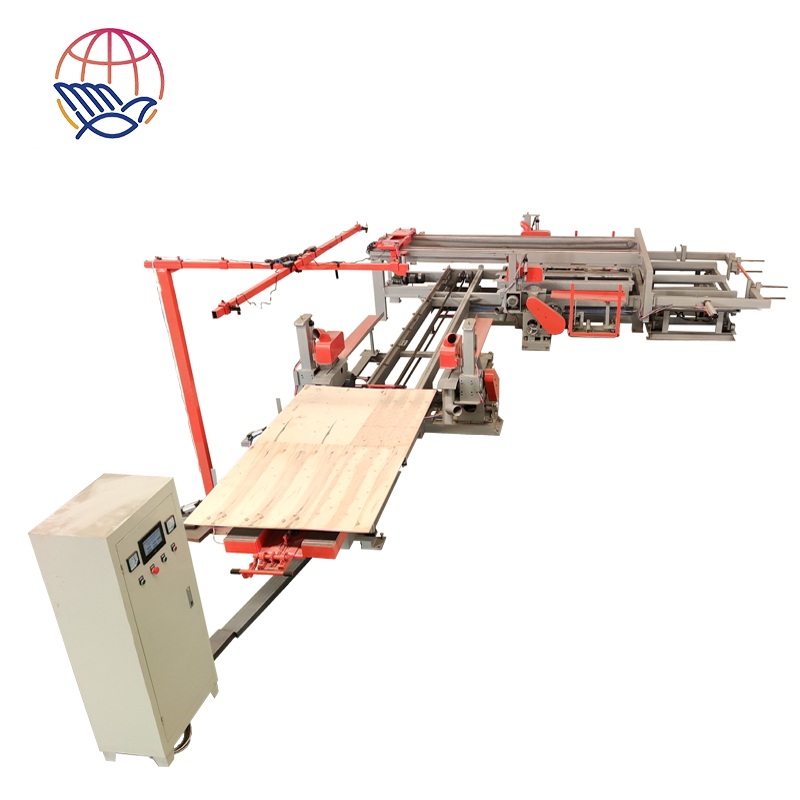

Model: YQ6/8JB-A.
Long saw cutting size: 1830-2440mm.
Lateral saw cutting size: 915-1220mm.
Working speed: 10-30m/min.
Main saw: 4*11kw .
Scribing saw: 4*1.1kw.
Conveyor motor: 2*1.5kw.
Lift table: 3kw.
Dust collector: 5.5kw.
Saw blade outer diameter: 305mm.
Saw blade inner diameter: 25.4mm.
Material: Alloy.
Max working thickness: 60mm.
Capacity: 8-12pcs/min.
Working style: Infrared ray guidance.
Working Methods: Full Automatic.
Weight: 6300kgs.
Overall dimension: 8000×5000×1200mm.
Long saw cutting size: 1830-2440mm.
Lateral saw cutting size: 915-1220mm.
Working speed: 10-30m/min.
Main saw: 4*11kw .
Scribing saw: 4*1.1kw.
Conveyor motor: 2*1.5kw.
Lift table: 3kw.
Dust collector: 5.5kw.
Saw blade outer diameter: 305mm.
Saw blade inner diameter: 25.4mm.
Material: Alloy.
Max working thickness: 60mm.
Capacity: 8-12pcs/min.
Working style: Infrared ray guidance.
Working Methods: Full Automatic.
Weight: 6300kgs.
Overall dimension: 8000×5000×1200mm.
