Description

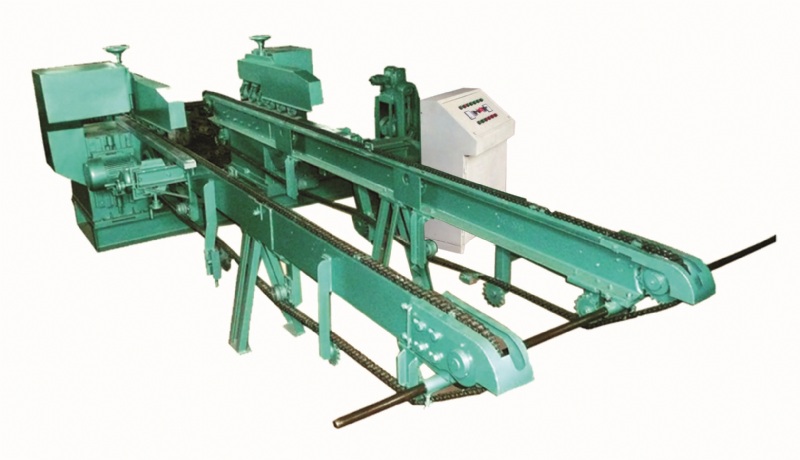

Technical Data: Edge Trimming Saw Machine
o TOTAL LENGTH OF DDSAW : 9760mm
o TOTAL WIDTH OF DDSAW : 4270mm
o HEIGHT OF DD SAW : 1370mm
o Motors : 7.5Hp/ 1Hp& 3Hp
‧ Heavy duty, At a Time 1200x2400mm (4’-0”x8’-0”) cutting Chain D. D. Saw machine
‧ One side of the cutting saw will be fixed and other side (right hand side) will be adjustable upto 2400x1200mm (8’-0”x4’-0”) long.
‧ Maximum cutting upto 8’-0” and minimum- 2’-0” in length
‧ The machine is fitted with necessary dust collecting hopper,
‧ 4 Nos. Tungsten Carbide Tripped Circular Saw and Main Saw 16” Dia.
‧ Main Saw Diameter 16” & 132 Teeth in both side each.
‧ 4 Nos. Scoring Blade Diameter 10” & 100 Teeth in both side
‧ Panel Box with Starters, Switches complete.
‧ 1 No. Gear Box & 1” Chains for the Total Conveyor.
‧ The machine will be completed with finish paint.
:
Features:
Low power requirement
Designing consistency
Convenient to use
Shock-proof
Heavy Duty
Maintenance Free
o TOTAL LENGTH OF DDSAW : 9760mm
o TOTAL WIDTH OF DDSAW : 4270mm
o HEIGHT OF DD SAW : 1370mm
o Motors : 7.5Hp/ 1Hp& 3Hp
‧ Heavy duty, At a Time 1200x2400mm (4’-0”x8’-0”) cutting Chain D. D. Saw machine
‧ One side of the cutting saw will be fixed and other side (right hand side) will be adjustable upto 2400x1200mm (8’-0”x4’-0”) long.
‧ Maximum cutting upto 8’-0” and minimum- 2’-0” in length
‧ The machine is fitted with necessary dust collecting hopper,
‧ 4 Nos. Tungsten Carbide Tripped Circular Saw and Main Saw 16” Dia.
‧ Main Saw Diameter 16” & 132 Teeth in both side each.
‧ 4 Nos. Scoring Blade Diameter 10” & 100 Teeth in both side
‧ Panel Box with Starters, Switches complete.
‧ 1 No. Gear Box & 1” Chains for the Total Conveyor.
‧ The machine will be completed with finish paint.
:
Features:
Low power requirement
Designing consistency
Convenient to use
Shock-proof
Heavy Duty
Maintenance Free
