Explosion Venting Systems.

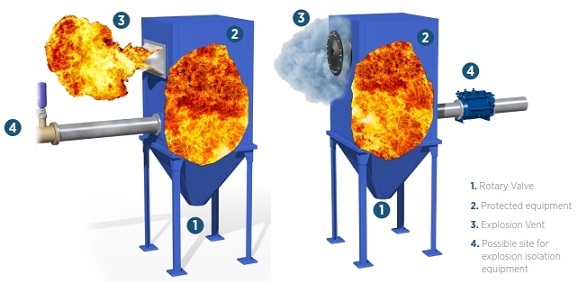

Explosion venting entails the incorporation of a frangible panel or membrane into the top or side of process plant equipment so that the overpressure of an explosion is released into the atmosphere. Venting is a proven explosion protection strategy where it can be safely applied.

For many years the most common explosion protection strategy was venting. Used correctly, explosion venting remains a viable strategy. While venting is usually the most cost effective method of explosion protection, there are circumstances where venting is impractical and explosion suppression a preferable option.

Since the goal of explosion venting is to release the explosion overpressure before the process vessel is damaged, burnt and unburnt dusts and vapors are released through the vent opening. The ejected fireball, with a typical volume eight times or more larger than the vessel volume, must be released to a safe area.

---
